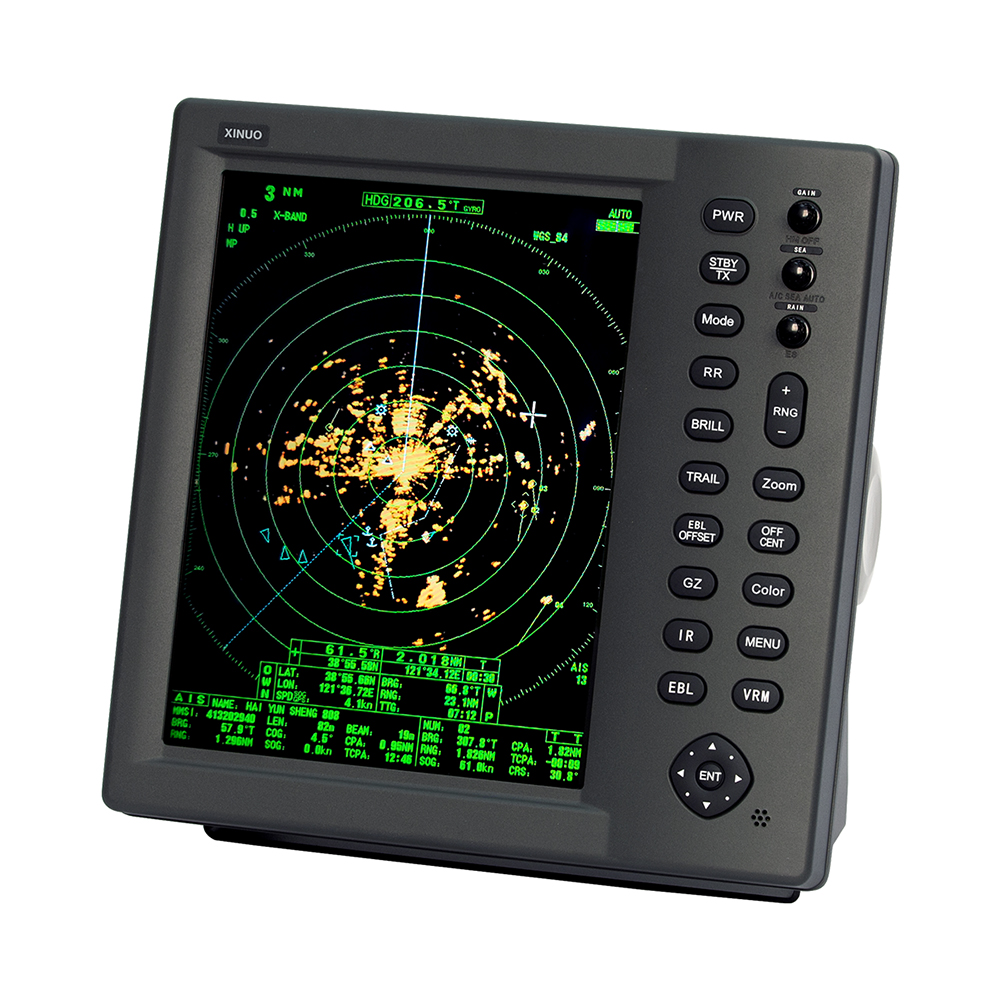

High-Performance Marine Navigation Radar

XINUO XLR series marine navigation radar is designed with high-performance microprocessor and advanced integrated circuits. It delivers stable imaging with clear and rich echoes, and offers a variety of color display options for echoes and screen, ensuring optimal visibility under various lighting conditions, day or night.

The radar support communication with other devices via NMEA0183, such as Compass, AIS, and Log. Users can expand and customize the vessel's systems as required.

This radar meets the following standards

IEC 61162-1/2 Maritime navigation and radiocommunication equipment and systems-Digital interfaces.

IEC 60945:2002/COR1:2008 Maritime navigation and radiocommunication equipment and systems-General requirements-Methods of testing and required test results.

EN 62252:2004 Maritime navigation and radiocommunication equipment and systems.

◆ The zoom function allows to enlarge selected areas to twice normal size for close-up observation.

◆ Echo colors are available in a choice of red, green, yellow, orange or multi-color.

◆ With automatic tuning/gain/sea/rain control functions.

◆ The radar map operates in a north-up mode and using the WGS-84 reference coordinate system.

◆ Users can generate radar maps with a combination of map lines and symbols, and map data can  be saved to facilitate repeated use on a routine navigation area.

◆ The TT (ARPA) can capture and track 20 targets automatically or manually.

◆ The EPA can plot up to 10 targets to estimate their movement trends.

◆ The radar system is compatible with GNSS, HDT, AIS, and LOG data.
